Horizontal Liquid Cryogenic Storage Tank 1t

    Buy cheap Horizontal Liquid Cryogenic Storage Tank 1t from wholesalers

    Buy cheap Horizontal Liquid Cryogenic Storage Tank 1t from wholesalers
    • Buy cheap Horizontal Liquid Cryogenic Storage Tank 1t from wholesalers

    Horizontal Liquid Cryogenic Storage Tank 1t

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

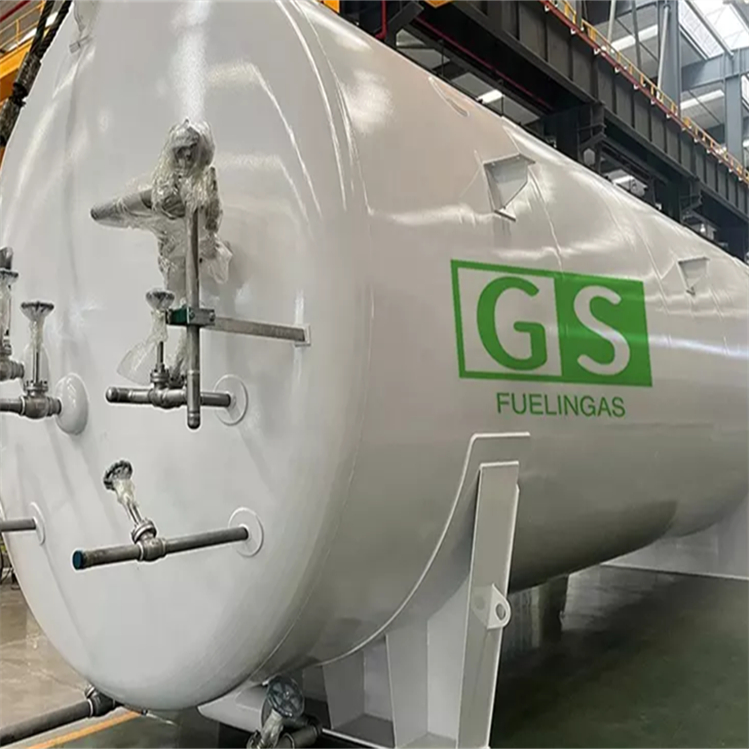

    Horizontal Liquid Cryogenic Storage Tank 1t

    Horizontal Cryogenic 1t Liquid Cryogenic Storage Tank

    Description

    As one of the important components of the whole industry chain serving the low temperature industry, mikimm brand cryogenic storage tank products can provide different insulation methods for the industry users at present, such as ordinary stacking insulation, vacuum powder insulation, high vacuum multilayer insulation, etc; from 3.8m3 to 50000m3, various fixed pressure vessels and fixed atmospheric pressure vessels of different volumes.
    Through 20 years of technology accumulation, mikimm series of cryogenic storage tank products and business scale have been in the forefront of the country. It has the overall solutions in various fields from storage to industrial application for industry users, and fully meets the needs of industry users.
    Looking forward to the future, mikimm company will base on the scientific and technological achievements achieved, and realize the second leap in the large-scale and scientific and technological products.

    Parameter

    Item
    Geometric Vlume
    (m³)
    Working Pressure
    (MPa)
    Dimension
    Vertical:(DxH)mm
    Horizontal: (LxWxH)mm
    Weight
    (kg)
    Filling Weight
    (kg)
    Insulation Method
    Type
    1
    55.56
    0.8
    Φ3020x13520
    17900
    21300
    Pearlite Insulation
    Vertical
    2
    55.56
    0.8
    13200x3020x3370
    17330
    21300
    Pearlite Insulation
    Horizontal
    3
    60
    0.8
    Φ3020x14375
    20700
    23004
    Pearlite Insulation
    Vertical
    4
    60
    0.8
    14200x3020x3370
    18150
    23004
    Pearlite Insulation
    Horizontal
    5
    100
    0.8
    Φ3624x16350
    35400
    38340
    Pearlite Insulation
    Vertical
    6
    111.1
    0.8
    Φ3624x17940
    37000
    42600
    Pearlite Insulation
    Vertical
    7
    150
    0.8
    Φ3824x21087
    48500
    57510
    Pearlite Insulation
    Vertical
    8
    166.67
    0.8
    Φ3824x23160
    51800
    63900
    Pearlite Insulation
    Vertical

    Design codes:GB150, GB/T18442, ASME Ⅷ-1
    Capacity: 5~200m3;

    Working Pressure: 0.8~1.2MPa;
    Type: Vertical/Horizontal;
    Material: S30408/SA240 304 (for Inner tank) ; Q345R/16MnDR/SA516 (for outer tank)

    Horizontal Cryogenic 1t Liquid Cryogenic Storage Tank
