    Cryogenic Micro Bulk Tanks For Liquid Oxygen Storage

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

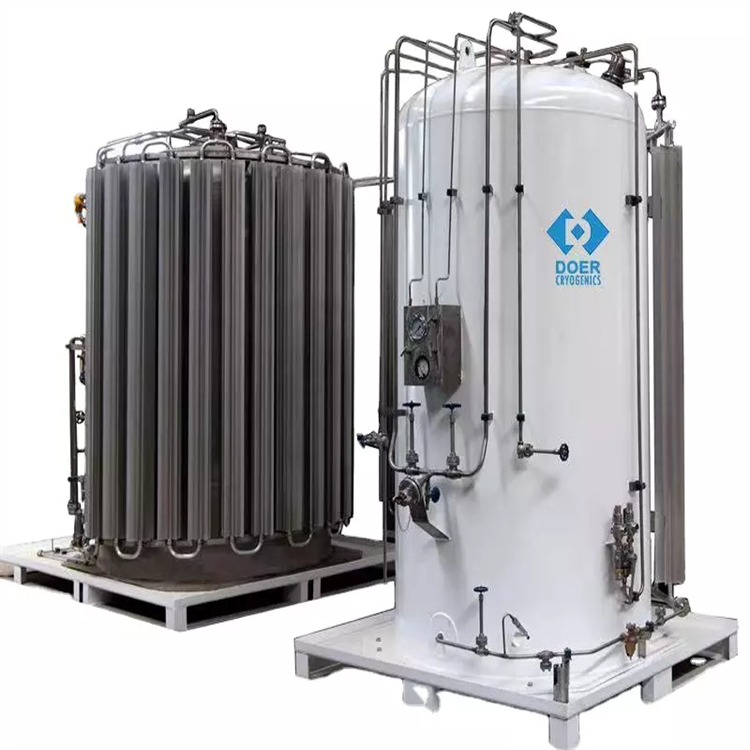

    Cryogenic Micro Bulk Tanks For Liquid Oxygen Storage

    Cryogenic Liquid Oxygen Storage Micro Bulk Tanks

    Description
    Micro bulk tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M 3and 5M3. The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer. Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn.Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

    Specification

    Cryogenic Liquid Oxygen Storage Micro Bulk Tanks
    The effective volume
    (m3)

    Maximum working pressure

    (MPa)
    Empty container
    (kg)
    Outline dimension
    (Diameter * height)
    5
    0.2
    3623
    1916x5260
    0.8
    3825
    1.6
    5118
    10
    0.2
    5790
    2316x5970
    0.8
    6235
    1.6
    10710
    2.0
    13200
    15
    0.2
    7805
    2516x6875
    0.8
    8033
    1.6
    8531
    20
    0.2
    9175
    2516x8630
    0.8
    9950
    1.6
    12030
    30
    0.2
    13527
    2720x10230
    0.8
    15100
    1.6
    18110
    50
    0.2
    18650
    3020x12670
    0.8
    21565
    1.6
    26740
    100
    0.2
    36570
    3524x17040
    0.8
    44595
    1.6
    53550
    150
    0.2
    60878
    3928x20210
    0.8
    72365
    1.6
    88663
    200
    0.2
    76838
    4724x19192
    0.8
    92143
    1.6
    108440


    Remarks
    1. Inner Material:304/316 stainless steel.
    2. Outer Material:Q235b carbon steel.
    3. use:: industrial, medical, civil natural gas, etc.

    Packing and shipping
    We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.
