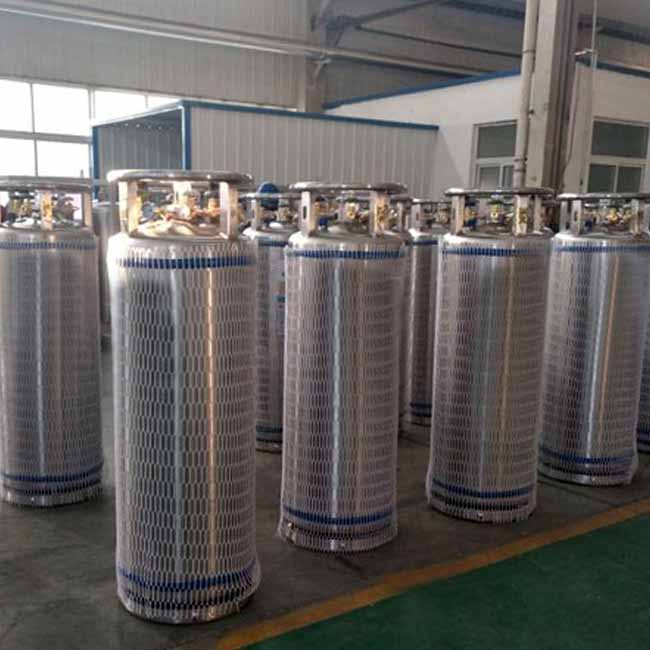

Cryogenic Vacuum Insulated Liquid Nitrogen Dewar Cylinder

Description

Welding thermal insulation cylinder, commonly known as dewar is liquefied natural gas (LNG), liquid oxygen, vehicle of natural gas, cryogenic liquid storage devices, widely used in the production of liquefied gas storage, transportation, use, and other fields, is particularly important for cylinder sealing, any leak can lead to the loss of the gas, if the bearing is gas or flammable gases, There is a risk of explosion, so leak detection for dewar (welded insulated gas cylinders) is very necessary.

Specification

Matters needing attention

1. During transmission, a special delivery hose is needed to connect the cylinder in and out of the liquid valve (DPW cylinder is the liquid inlet valve) with the supply source, and tighten to ensure no leakage of dewar bottle.

2. Open the discharge valve and inlet and outlet valve of the low-temperature dewar bottle, and then open the supply valve to start filling.

3. During the filling process, the pressure in the bottle is monitored by the pressure gauge and the discharge valve is adjusted to keep the pressure at 0.07~ 0.1mpa (10~15 psi).

4. Close the inlet and outlet valve, discharge valve and supply valve when the required filling quality is reached.

5. Remove the conveying hose and remove the low-temperature dewar bottle.

As a professional pressure vessel enterprise, Henan Mikim Machinery Co., Ltd. has been involved in the pressure vessel industry since 2012. Our company can provide products such as large cryogenic storage tanks and LPG series containers. At the beginning of the company's establishment, it purchased the most advanced equipment and recruited a group of skilled front-line workers. We are committed to providing the best products to our international customers. The company covers an area of 68,000 square meters and has 100 front-line workers, 12 technicians and 6 quality inspectors. The integration of production and sales, the company consists of five main departments: production department, technical department, sales department, general accounting department, and human resources department. Also, each department can be divided into many smaller departments. All departments cooperate with each other to bring the best for our company. In order to bring the most qualified products to the market, our quality control department implements strict quality inspection process from raw material procurement to finished product testing, to ensure that only the best products leave the factory for customers.

The group adheres to the tenet of “intentional management, customer priority, coordinated development and dedication to society” and abides by the business philosophy of “technology first, quality as priority, striving for excellence, integrity for future”, which continuously satisfy different needs of customer around the world in the steel supply chain area. Professional sales team, providing customers with first-class services; strict purchasing and quality inspection team, carefully selecting high-quality raw materials; advanced scientific and technical team to improve production and reduce costs for customers; excellent design and processing team, carefully crafted and refined; intimate shipping logistics team protecting product transportation.
