    Stainless Steel LN2 Dewar Tank Cryogenic Liquid CO2 O2 Argon LNG

    Cryogenic Stainless Steel Dewar Sizes Tank For Liquid Co2 O2 N2 Argon LNG


    Description

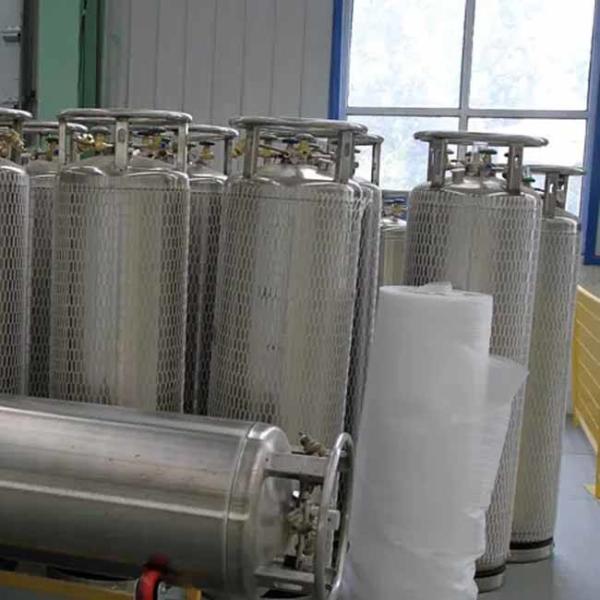

    A cryogenic dewar is a stainless steel pressure vessel with ultra-vacuum insulation. It is specially designed for storing, transporting and using liquid oxygen, liquid nitrogen, liquid argon or carbon dioxide. It can be used for reliable and economical transport and storage of cryogenic liquid gases, as well as for on-site storage and supply of cryogenic liquid gases, with a wide range of applications and economical safety.


    Parameter

    Product specification450-175450-195450-210
    Dimension508*1500mm508*1620mm508*1700mm
    Working pressure1.4Mpa1.4Mpa1.4Mpa
    Take off pressure of safety valve1.59Mpa1.59Mpa1.59Mpa
    Bursting pressure2.6Mpa2.62.6Mpa2.6Mpa
    Capacity175L195L210L
    Effective capacity166L185L197L
    Evaporation rate(LN2)≤2.4%≤2.4%≤2.4%
    Max filling volume(LN2)121KG135KG145KG

    dewar

    Application

    The Dewar is a super vacuum insulated stainless steel pressure vessel designed for the storage, transport and use of liquid oxygen, liquid nitrogen, liquid argon or carbon dioxide. These containers are manufactured to standards for the economical transport and storage of cryogenic liquid gases, as well as for storage and supply of cryogenic liquid gases in a wide range of applications.

    dewar

    Precautions

    Dewar The first step is to use high pressure metal hose to connect the pipe where the Dewar liquid valve is located to the evaporator. Once the connection is confirmed, the fluid valve can be opened. If the gas pressure to the company workshop does not meet the requirements for use, please open the booster valve and wait for a few minutes for the pressure to rise to meet the requirements for use. When there is no liquid phase in the Dewar and the gas pressure is only 5kg, it means that the gas in the Dewar has been used up. Please close the liquid use valve and stop using it.
