    1.77 MPa Horizontal LPG Gas Storage Tank 100 Ton Mounded Bullet

    Customized Asme Standard Production Large Capacity LPG Pressure Storage Gas Tank


    Description

    The horizontal LPG storage tank is a special equipment for storing liquefied petroleum gas (LPG) with a saturated vapor pressure of less than 1.77Mpa at 50°C and a safe reserve of 2T-100T. The tank body is designed and manufactured according to the requirements of standard parameters. Able to meet the storage and transportation of lpg gas in large factories


    Parameter

    volumediametercylinderheadTankrefillsize
    512008816301995DN1200*4820
    101600101029503990DN1600*5300
    151800121243205985DN1800*6300
    202100121250507980DN2000*6800
    252200121460209975DN2200*7200
    3022001214711012768DN2200*8500
    50260014161064019950DN2600*10300
    60260014161275023940DN2600*11800
    80300016181700031920DN3000*12000
    100300016182041039900DN3000*14900
    120360020222600058300DN3600*12500
    150360020223160073000DN3600*15800
    200380022224160097300DN3800*18500

    Precautions

    1 The safety valve is designed when the tank body is placed in a spray device with a flow rate greater than 10L/m.min

    The size of the nozzle position of the 2 lpg storage tank can be set according to the actual position of the user.

    3 The reversible liquid level gauge can be changed to a magnetic float type according to user requirements.

    4 The data sheet is for reference only, the drawing shall prevail.


    production process

    1. cutting materials

    2. rolling machines for circling

    3. welding and NDT inspection

    4. re-circling after welding

    5. outer vessel’s abrasive blasting and anticorrosive painting for outside surface

    6. pipe connecting and assembly of inner vessel and outer vessel

    7. valves installation

    8. perlite filling

    9. vacuum-pumping

    10. final painting and ready for shipment

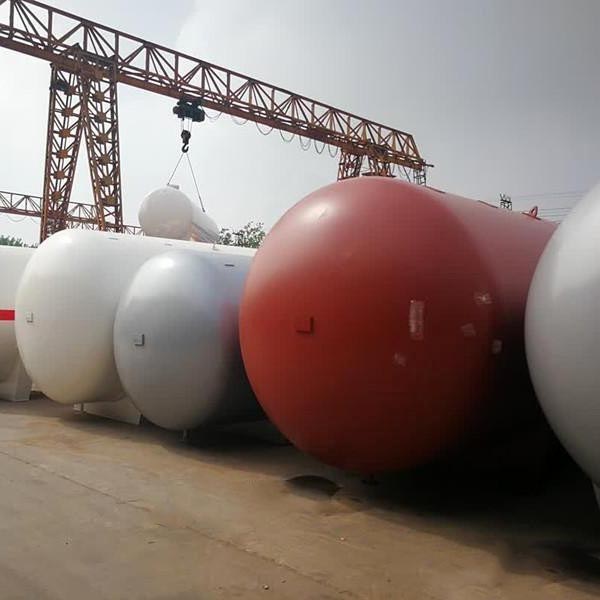

    lpg tank

    lpg tank
