    Floating Coil Tube Heat Exchanger 200mm 2.1MPA Pure Titanium

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Floating Coil Tube Heat Exchanger 200mm 2.1MPA Pure Titanium

    Factory Price Pure Titanium Heat Exchanger Pool Heater Evaporator Coil Tube Heat Exchangers


    Description

    Coil-type heat exchanger is a kind of tube-type heat exchanger, also known as coil-type heat exchanger and multi-circle tube-type heat exchanger. The one is called the shell process, and the internal one is called the tube process. Two different media can flow in the opposite direction (or the same direction) in the shell side and the tube side to achieve the effect of heat exchange.


    Specifications

    Models

    120D8

    135D8

    155D8

    185D10

    220D10

    270D10

    310D10

    Dimension(mm)

    A

    1815

    2115

    2315

    2320

    2320

    2654

    2654

    B

    219

    219

    219

    219

    273

    273

    273

    C

    200

    200

    200

    200

    234

    234

    234

    D

    1530

    1830

    2030

    2000

    2000

    2280

    2280

    E

    240

    240

    240

    300

    300

    300

    300

    Vent

    S1

    1/2

    1/2

    1/2

    1/2

    1/2

    1/2

    1/2

    Outlet

    S2

    1/2

    1/2

    1/2

    1/2

    1/2

    1/2

    1/2

    Connection

    W(DN)

    89

    89

    89

    89

    114

    114

    114

    D1(mm)

    22

    22

    22

    22

    35

    35

    35

    D2(mm)

    42

    42

    42

    42

    54

    54

    54

    P(kg)

    145

    155

    163

    232

    255

    279

    296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature

    Feature

    Coil heat exchanger heat transfer coefficient is high, due to the strengthening of the heat exchange tube, the formation of turbulent state. In the case of water-water heat exchanger, the heat transfer coefficient K increases by 80% and the cold value of hot medium increases by 35%. When you use soda heat transfer, you get K. Increase the cooling value of hot medium by 25%. The heat exchanger is more adequate, because of the special diversion device, there are water areas in the water tank. Coil heat exchanger series is complete, flexible, economical, in the place of high equipment requirements have a great choice.

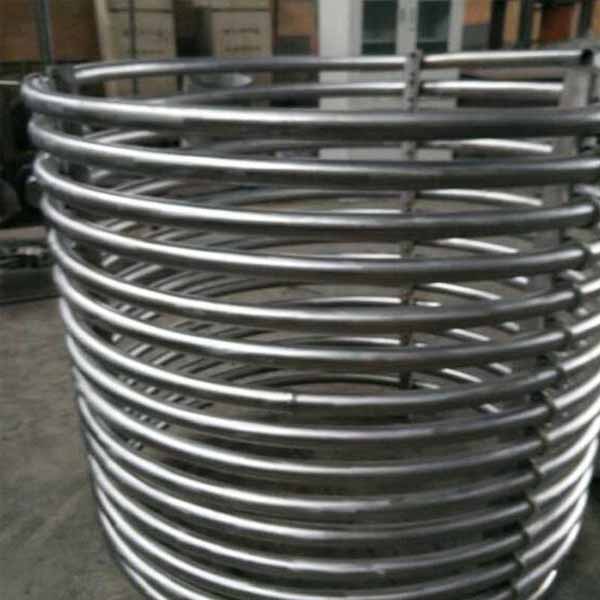

    coil heat exchanger

    coil heat exchanger
