10m3 21.6ba liquid nitrogen N2 cryogenic storage tank

Description

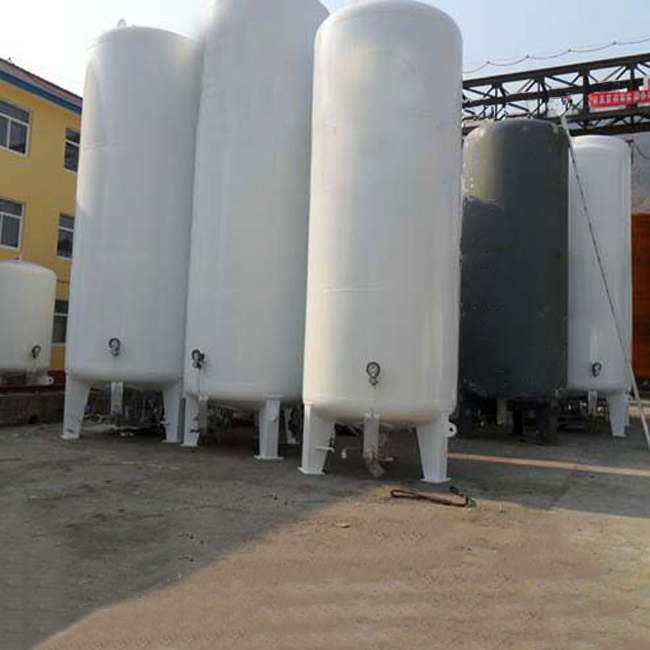

The cryogenic liquid nitrogen storage tank is a large-scale super pressure vessel equipment for storing liquid nitrogen with double-layer vertical circular cylindrical vacuum insulation. The inner and outer materials are made of different steels, and the interlayer between the two layers is filled with expanded perlite. The specially treated adsorbent will keep the vacuum of the interlayer well and prevent the leakage and evaporation of liquid nitrogen inside the storage tank.

Parameter

Boosting range:

1. Check whether the pressure gauge and liquid level gauge of the cryogenic liquid nitrogen storage tank are in working condition.

2. Make sure that the gas passing valve is fully open.

3. Slowly open the front valve (booster valve) of the supercharger to make the liquid enter the supercharger to vaporize. If the discharge speed is fast and the pressure of the inner cylinder drops fast, the booster valve can be opened. When the pressure reaches the required working pressure, close down or completely close the front valve of the supercharger, at this time, the liquid in the supercharger will continue to evaporate to the required pressure. During the pressurization process, pay close attention to the change of the indicated value of the pressure gauge.

Advantage

The cryogenic liquid nitrogen storage tank adopts vacuum powder for heat preservation, which can ensure that the daily evaporation rate of the storage tank is low, the vertical structure can occupy a small area, save the space of the manufacturer, and the equipment of the overall storage tank can be centrally controlled and operated and maintained. convenient

As a professional pressure vessel enterprise, Henan Mikim Machinery Co., Ltd. has been involved in the pressure vessel industry since 2012. Our company can provide products such as large cryogenic storage tanks and LPG series containers. At the beginning of the company's establishment, it purchased the most advanced equipment and recruited a group of skilled front-line workers. We are committed to providing the best products to our international customers. The company covers an area of 68,000 square meters and has 100 front-line workers, 12 technicians and 6 quality inspectors. The integration of production and sales, the company consists of five main departments: production department, technical department, sales department, general accounting department, and human resources department. Also, each department can be divided into many smaller departments. All departments cooperate with each other to bring the best for our company. In order to bring the most qualified products to the market, our quality control department implements strict quality inspection process from raw material procurement to finished product testing, to ensure that only the best products leave the factory for customers.

The group adheres to the tenet of “intentional management, customer priority, coordinated development and dedication to society” and abides by the business philosophy of “technology first, quality as priority, striving for excellence, integrity for future”, which continuously satisfy different needs of customer around the world in the steel supply chain area. Professional sales team, providing customers with first-class services; strict purchasing and quality inspection team, carefully selecting high-quality raw materials; advanced scientific and technical team to improve production and reduce costs for customers; excellent design and processing team, carefully crafted and refined; intimate shipping logistics team protecting product transportation.
