Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel

    Buy cheap Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel from wholesalers

    Buy cheap Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel from wholesalers
    • Buy cheap Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel from wholesalers
    • Buy cheap Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel from wholesalers

    Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel

    Ask Lasest Price
    Brand Name : mkimm
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

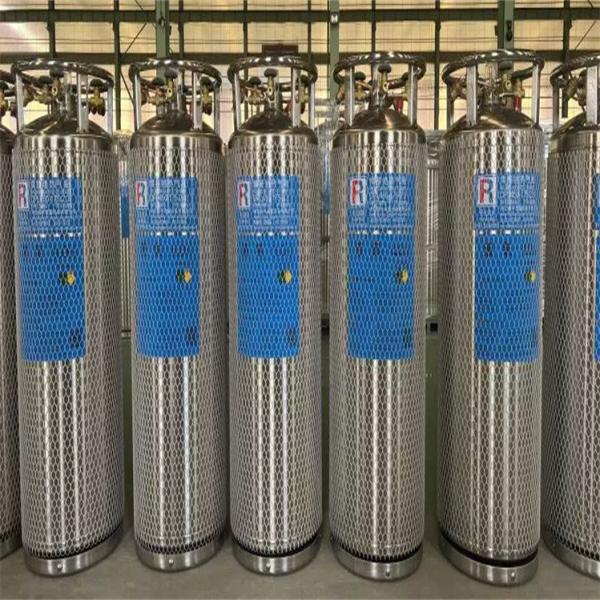

    Cryogenic Dewar Liquid Nitrogen Storage Cylinder 210l Pressure Vessel

    Cryogenic Dewar Cylinder Liquid Nitrogen Storage Cylinder Cryogenic Liquid Storage Tank 210l Pressure Vessel


    The DPL series containers are high performance vacuum insulated, it is designed to store and transport cryogenic liquid oxygen,nitrogen or argon. Containers can be used for over road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications in a long holding time, with self-Pressure built gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h. if you require a greater vaporizing volume, we can provide an external vaporizer.

    Product Model
    DPL-100
    DPL-175
    DPL-195
    DPL-210
    DPL-410
    DPL-450
    Diameter*Height(mm)
    454*1247
    508*1500
    508*1620
    508*1707
    750*850*1770
    750*850*1900
    Working Pressure(MPa)
    1.33
    1.42.01
    2.88
    1.42.01
    2.88
    1.42.01
    2.88
    1.43.17
    1.43.17
    Pressure Relief Valve(MPa)
    1.59
    1.592.41
    3.45
    1.592.41
    3.45
    1.592.41
    3.45
    1.593.45
    1.593.45
    Inner Container Bursting Disc(MPa)
    2.60
    2.603.62
    5.17
    2.603.62
    5.17
    2.603.62
    5.17
    2.605.70
    2.605.7
    Maximum Liquid Capacity(L)
    100
    175
    195
    210
    410
    450
    Usable Liquid Capacity(L)
    95
    166
    185
    197
    389
    427
    Normal Evaporation Rate ((LN2))
    ≤2.1%
    ≤2.1%
    ≤2.1%
    ≤2.1%
    ≤1.8%
    ≤1.8%

    Cryogenic Dewar Cylinder


    FAQ

    Q1.Are you manufacturer or trading company?

    We are professional manufacturer in cryogenic equipment filed.
    Q2.What's your advantage?
    We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand
    after-sales service.
    Q3.Have your engineers participated in any foreign projects?
    Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation and comissioning of the equipment in Turkey,Russia,
