Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L

HENAN GNEE ELECTRIC CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L from wholesalers

    Buy cheap Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L from wholesalers
    • Buy cheap Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L from wholesalers
    • Buy cheap Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L from wholesalers
    • Buy cheap Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L from wholesalers

    Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L

    Ask Lasest Price
    Brand Name : mkimm
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

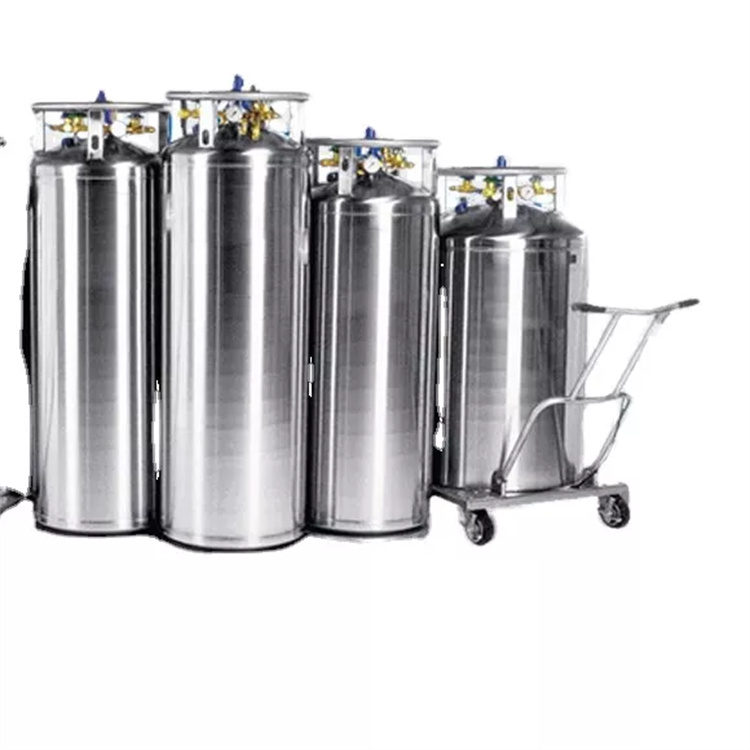

    Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder 495L

    Liquid Oxygen Nitrogen Cryogenic Dewar Cylinder


    Dewar

    Dewar is a stainless steel pressure vessel with super vacuum insulation, designed for storage, transportation and use of liquid oxygen, liquid nitrogen, liquid argon or carbon dioxide. These containers are manufactured according to the DOT4L standard for reliable and economical transportation and storage of cryogenic liquid gas, and in-situ storage and supply of cryogenic liquid gas in a wide range of applications.

    Parameter

    Product Specification
    Product Model
    DPL-400
    DPL-175
    DPL-195
    DPL-210
    DPL-410
    DPL-450
    Diameter*Height(mm)
    750*850*1900
    508*1500
    508*1620
    508*1707
    750*850*1770
    750*850*1900
    Working Pressure(Mpa)
    2.88
    1.4/2.01/2.88
    1.4/2.01/2.88
    1.4/2.01/2.88
    1.4/3.17
    1.4/3.17
    Pressure Relief Valve(Mpa)
    3.45
    1.59/2.41/3.45
    1.59/2.41/3.45
    1.59/2.41/3.45
    1.59/3.45
    1.59/3.45
    Inner Container Bursting Disc(Mpa)
    5.17
    2.60/3.62/5.17
    2.60/3.62/5.17
    2.60/3.62/5.17
    2.60/5.70
    2.60/5.7
    Max.Liquid Capacity(L)
    400
    175
    195
    210
    410
    450
    Usable Liquid Capacity(L)
    380
    166
    185
    197
    389
    427
    Evaporation Rate(LN2)
    ≤1.8%
    ≤2.1%
    ≤2.1%
    ≤2.1%
    ≤1.8%
    ≤1.8%
    Tare Weight(Kg)
    308
    110/125/145
    117/133/158
    122/139/165
    290/---
    290/397
    Oxygen(Kg)
    433
    189
    210
    226
    443
    487
    Nitrogen(Kg)
    307
    134
    150
    161
    315
    346
    Argon(Kg)
    532
    208
    259
    278
    548
    602
    Natural Gas(Kg)
    ----
    70
    76
    86
    179
    -----
    CO2(Kg)
    418
    183
    204
    219
    325
    470
    NO2(Kg)
    468
    191
    213
    227
    448

    492


    FAQ

    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients
    more convener ,we accept small order.

    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

    Q3: Can you do OEM for me?
    A3: We accept all OEM orders,just contact us and give me your design.we will offer you a
    reasonable price and make samples for you ASAP.
