    195 Liter High Pressure Liquid Nitrogen Tank Stainless Steel , Liquid O2 Dewar Cylinder

    Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinder


    Description

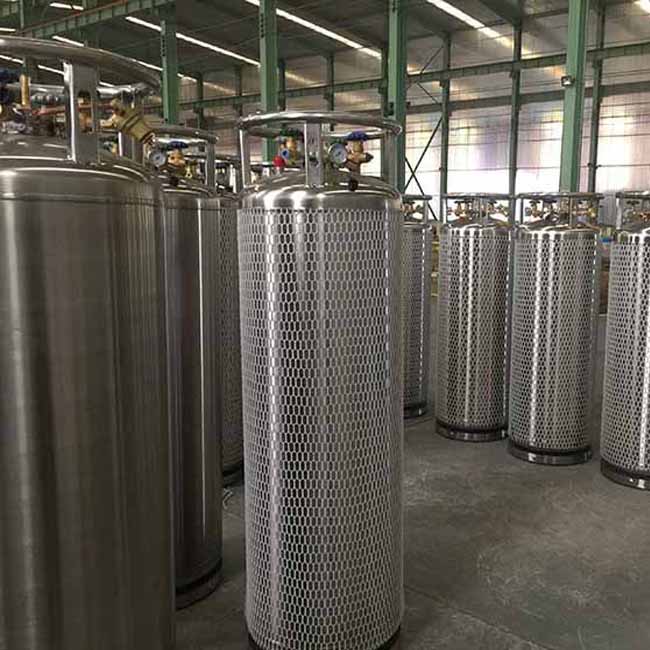

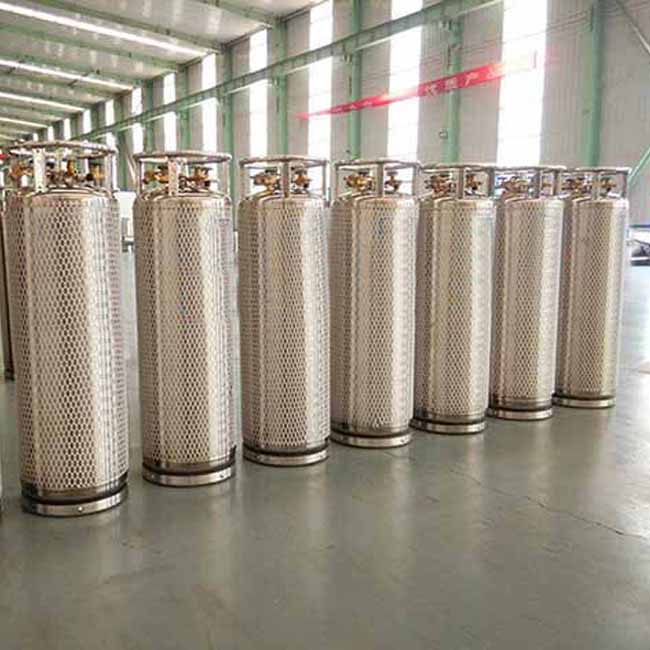

    Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinders are multi-layer insulated, removable cryogenic liquid containers that can be used to store and transport liquid gases such as liquefied oxygen, argon, nitrogen, natural gas and carbon dioxide. The whole can be applied to the gas supply device and centralized gas supply to smaller pipelines.


    Parameter

    Product specification175195210375410450
    Dimension(D*H)508*1530508*1562508*1747900*1632900*1738900-1857
    Working prissure(Mpa)1.40/2.00/2.881.40/3.17
    Take off pressure of safety valve(Mpa)1.60/2.40/3.101.60/3.80
    Bursting pressure(Mpa)2.60/3.60/5.172.60/5.70
    Capacity(L)175195210375410450
    Effective capacity(L)166185197357390427
    Evaporation rate(LN2)≤2.1%≤2.1%≤2.1%≤2.1%≤2.1%≤2.1%
    Weight(Kg)111117123200212234
    Max filling volume(Kg)
    Oxygen(Kg)172191205369404442
    Nitrogen(Kg)121135145260284311
    Argon(Kg)208233250447488535
    LNG(kg)737288N/AN/AN/A

    dewar


    application:

    1. Support Customization Industrial Stainless Steel Cryogenic Liquid O2 Dewar Cylinder can be filled with medical liquid oxygen as a device to provide LO2;

    2. Industrial metal cutting, welding, heating and oxygenating;

    3. Filled with liquid argon, used for argon protection occasions such as argon arc welding;

    4. Liquid nitrogen filling with high nitrogen protection, food medicine, biology and superconductivity and other fields.


    dewar

    Why choose us:

    Strong technical force, perfect quality assurance system. The company invests a large amount of revenue annually in the development and testing of new technologies and products. Strive for Standard Enterprise in Low Temperature Industry.
