    195 Liter Argon Dewar Tank Stainless Steel , 160 Liters Liquid Nitrogen Tank Pressure

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

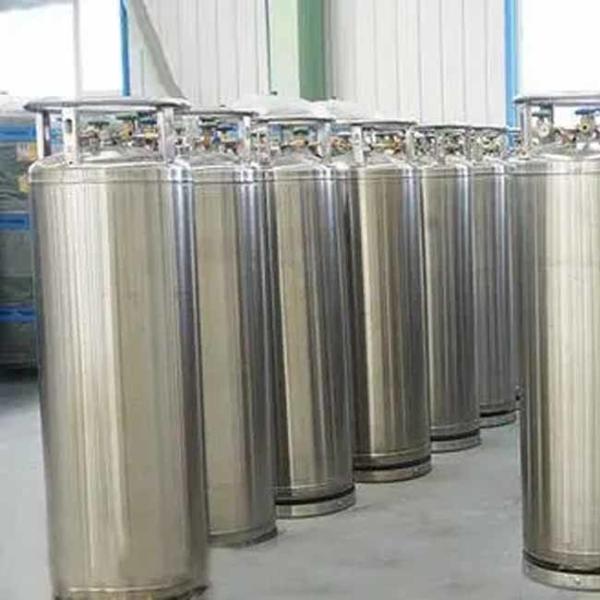

    195 Liter Argon Dewar Tank Stainless Steel , 160 Liters Liquid Nitrogen Tank Pressure

    195 Liter Good Brand Cryogenic Liquid Nitrogen Dewar Cylinder


    Description

    Dewars are vacuum insulated stainless steel pressure vessels for reliable and economical transport and storage of cryogenic liquid gases, as well as on-site storage and supply of cryogenic liquid gases for a wide range of applications.


    Parameter

    Liquid Dewar Cylinder
    TypeVertical Dewar Cylinder
    Nominal Capacity175L 195L 210L
    Effective Capacity160L 180L 195L
    Nominal Working Pressure1.37/2.3/2.88Mpa
    Opening Pressure of Safety Valve1.59/2.41/3.45Mpa
    Burst Pressure of Safety Disk2.4/3.6/5.17Mpa
    Evaporation RateLess Than 2.1%/d
    Weight of Empty Cylinder116/125/133/142/145/148/158/160/169kg
    Overall Dimension505*1551/1675/1761mm
    Liquid Level GaugeFloating
    Surface TreatmentPolished
    Base Support StructureFoot Ring

    dewar

    Specification

    1. Storage medium: LO2, LN2, LAr, LNG or LCO2

    2. Working pressure: 1.4MPa~3.0MPa, or as required.

    3. Geometric capacity: 175 liters, 195 liters, 210 liters, 450 liters, 499 liters, etc.

    4. Manufacturing standards: A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001: 2008

    dewar

    FAQ

    Q:What is the capacity of dewar tank for sale you can provide?

    A:499L is the bestseller, we can offer 175L-499L dewar cylinders.


    Q:What is the delivery time of dewar tank for sale in your factory?

    A:15-45 Days once deposit received.


    Q:Can you detail about packaging and shipping of the dewar tank?

    A:Packaged by carton or wooden case.

    If the cylinder use Bulk Loading: one 20ft/hc container can load 44 pieces vertical cylinder or 14 pieces horizontal cylinder.


    Q:Do you have any special attention about liquid dewar tanks?

    A:Yes,pressure vessels are carrying a certain pressure or placing explosive devices goods, which have certain risk, so we have the following recommendations:

    1. The liquid dewar tank should be stored in dry cool place, away from heat. And fireworks prohibited when use it. Liquid dewar cylinder shall not fall, impact and need to avoid explosure during transportation.

    2. Pay attention to safety use because the liquid dewar tank is flammable and explosive.

    3. Always use the specially designed cylinder cart when moving liquid cylinders. If the cart has a height adjustment for different cylinders, be sure it’s adjusted to the proper height.
