0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator

    Buy cheap 0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator from wholesalers

    Buy cheap 0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator from wholesalers
    • Buy cheap 0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator from wholesalers
    • Buy cheap 0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator from wholesalers

    0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator

    Industrial Pressure Swing Adsorption Oxygen Generator


    Description

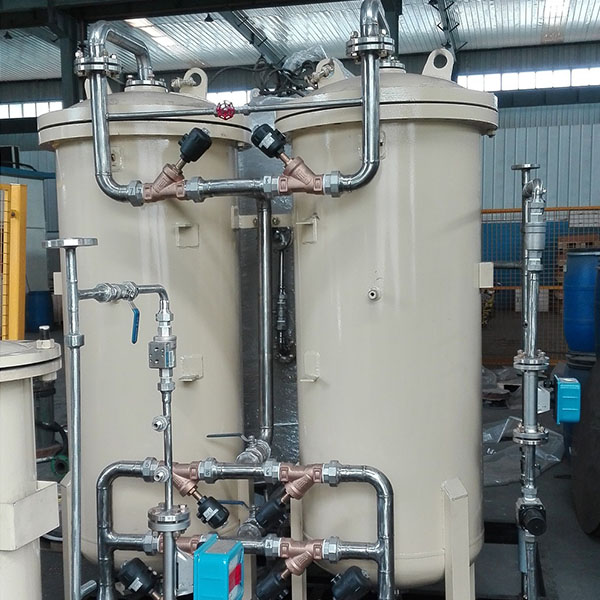

    PSA oxygen generator is an oxygen generator carefully developed according to the principle of "PSA" pressure swing adsorption. Using high-quality zeolite as adsorbent, oxygen is directly separated from air at room temperature. After the pressure-holding air is purified and dried, oxygen and nitrogen can be separated under the action of pressure swing adsorption. Due to the selective adsorption characteristics of molecular sieves, nitrogen is adsorbed in molecular sieves, and oxygen is enriched in the oxygen storage gas phase, which is output as a product. The system is equipped with two adsorption towers, one tower absorbs oxygen, the other desorbs and regenerates, and the cycle alternates to continuously produce oxygen.


    Parameter

    ModelOGP-05LBOGP-08LBOGP-10LBOGP-15LBOGP-20LBOGP-30LBOGP-40LBOGP-50LBOGP-60LB
    Working voltage110V/220V/380V
    Power (KW)0.50.8411.51.8233.64
    Oxygen output L/min5810152030405060
    Concentration≥93%
    Temperature0-35℃
    Relative humidity≤70%±10%
    Noise≤ 65Db
    Size cm37*60* 9640*80*11540*80*11556*96* 11560*80*12560*100*125
    Oxygen outlet pressure (Mpa)0.3~0.5Mpa0.3~0.5Mpa
    Net Wight (KG)31505580100145190210230
    HousingCarbon steel sprayed with plastics
    PackingWooden case

    psa oxygen generator

    FAQ

    Q1:How many elevator do you produce everymonth?

    A: We can produce 35 pcs everymonth.


    Q2: Can you provide sample?

    A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.


    Q3: Can you use our brand?

    A: Yes, OEM is available.

    psa
