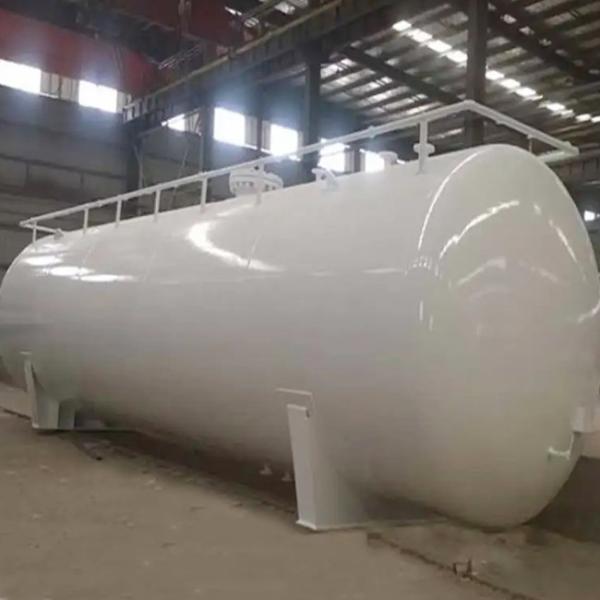

    20 Ton 40 Ton LPG Gas Storage Tank , 1.77MPA Propane Bullet Tank 10 Ton

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    20 Ton 40 Ton LPG Gas Storage Tank , 1.77MPA Propane Bullet Tank 10 Ton

    10 Ton 20ton 40 Ton Lpg Transport Cooking Gas Storage Propane Gas Tank


    Description

    LPG storage tanks are high-quality pressure vessels for transporting and storing liquefied petroleum gas. They have anti-corrosion characteristics. The tightness and pressure resistance of the storage tanks have passed the test. They are a new generation of high-quality LPG storage tanks and are deeply loved and welcomed by customers. The production of storage tanks is strictly in accordance with relevant standards and process requirements, and the finished products are subjected to processes such as heat treatment and sandblasting and rust removal.


    Parameter

    ModelSpecifications (mm)Weight in theory (KG)LPG Tank Length (mm)
    1.77-1200-5DN1200 x 3980 x 8/815804676
    1.77-1400-5DN1400 x 2750 x 10/1017703545
    1.77-1400-10DN1400 x 5980 x 10/1029106789
    1.77-1600-10DN1600 x 4400 x 10/1027505303
    1.771800-15DN1800 x 5250 x 12/1242156247
    1.77-2000-20DN2000 x 5650 x 12/1249656747
    1.77-2000-25DN2000 x 7250 x 12/1259158347
    1.77-2000-30DN2000 x 8850 x 12/1268709947
    1.77-2400-40DN2400 x 8000 x 14/1490109334
    1.77-2600-40DN2600 x 6600 x 14/1689108036
    1.77-2600-50DN2600 x 8500 x 14/14105259934
    1.77-2600-60DN2600 x 10360 x14/141233511796
    1.77-3000-80DN3000 x 10250 x 16/181680011888
    1.77-3000-100DN3000 x 13200 x16/181997014838
    1.77-3200-100DN3200×11300×18/18(16.8)2121013038
    1.77-3400-100DN3400×9850×20/20(18)2262011700
    1.77-3600-100DN3600×8550×20/22(20)2228510492
    1.77-3600-120DN3600×10500×20/22(20)2576512442
    1.77-3600-150DN3600×13500×20/22(20)3114015442
    1.77-3800-200DN3800×16300×22/22(20)4151518342

    Precautions

    In the process of handling and use, it is necessary to prevent the LPG storage tank from falling or impacting, and it is not allowed to knock the bottle valve with an iron tool, and it is necessary to prevent direct sunlight and long-term rain. LPG storage tanks are generally inspected every 2 years. Although the range of liquefied petroleum gas is not too wide, because of its small lower limit, it is easy to catch fire if it leaks. And because LPG is heavier than air, it flows downward when it leaks in the air, so it accumulates in low-lying places and becomes a hidden danger of gas explosion. Therefore, where the gas is easy to leak, only relying on the window to ventilate is not enough, and pay attention to the ventilation of the lower part.

    lpg tank

    lpg tank
