    0.5mpa Shell And Tube Evaporator Heat Exchanger 1.6mpa Q345R

    Ask Lasest Price
    Brand Name : MKIMM
    Model Number : MKIMM
    Certification : ISO
    Price : bargain
    Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on
    Supply Ability : 25 every month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    0.5mpa Shell And Tube Evaporator Heat Exchanger 1.6mpa Q345R

    Hot Sale Heat Exchanger Price Shell And Tube Heat Exchanger


    Description

    Shell and tube heat exchanger is a kind of heat exchanger design. It is the most common type of heat exchanger used in refineries and other large chemical processes and is suitable for high pressure applications. As the name suggests, this type of heat exchanger consists of a housing (a large pressure vessel) with a bundle of tubes inside. One fluid flows through the pipe and the other flows through the pipe (through the casing) to transfer heat between the two fluids. This set of tubes is called a bundle and may consist of several types of tubes: flat tubes, longitudinal finned tubes, etc.


    Parameter

    Heat exchanging capacity4mmbtu/h or based
    Design temperature(coil)200℃
    Design temperature(Shell)200℃
    Design pressure1.6MPa
    Working pressure(shell side)0.5MPa
    Working pressure(tube side)0.4MPa
    OPER.TEMP.(IN/OUT)(shell side)25/32℃
    OPER.TEMP.(IN/OUT)(tube side)100.6/50℃
    Tube side materialQ345R
    Shell sideQ345R
    WeightAbout 19,000kg
    Seismic intensity7 grade
    Number of passes(shell side)1
    Number of passes(tube side)4
    Tube sheet16MnIII

    Application

    Shell and tube heat exchangers are widely used in chemical, petroleum, power and atomic energy and other industrial sectors. Its main function is to ensure the specific temperature required by the process for the medium, and it is also one of the main equipment to improve energy utilization.

    Shell-and-tube heat exchangers can be divided into three types: hybrid type, regenerative type and partition type according to different heat transfer methods. Among them, carbon steel and low alloy steel are mostly used to manufacture medium and low pressure heat exchangers; in addition to stainless steel mainly used for different corrosion resistance conditions, austenitic stainless steel can also be used as high and low temperature resistant materials.

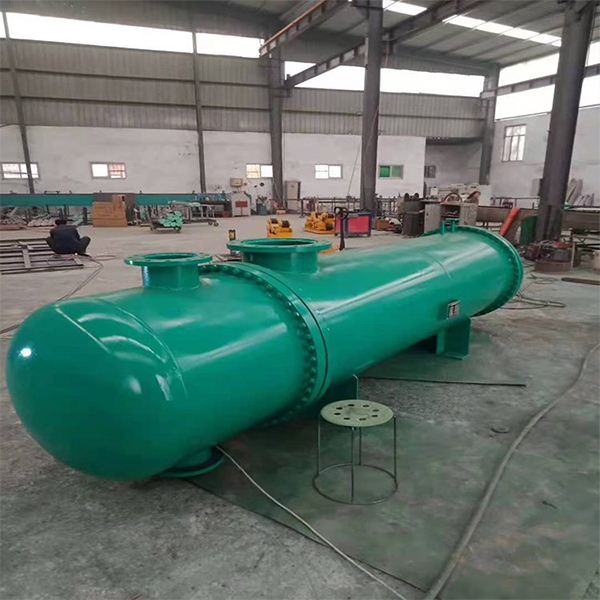

    shell and tube heat exchanger

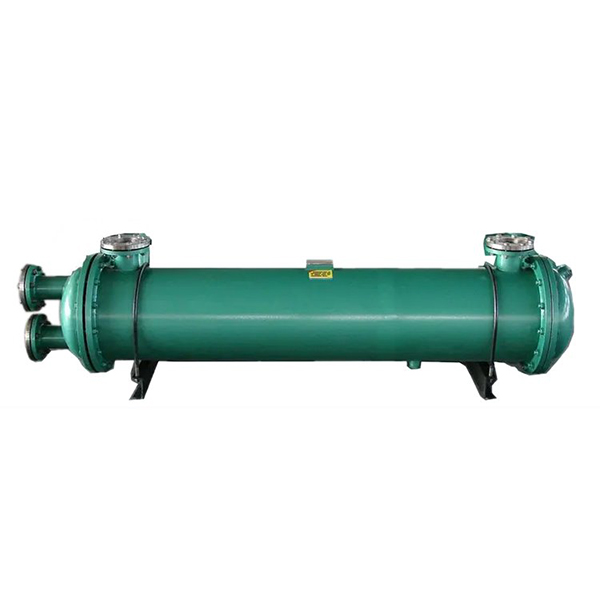

    shell and tube heat exchanger
