Factory Direct Price Good Quality High Efficiency Plate Heat Exchanger

Description

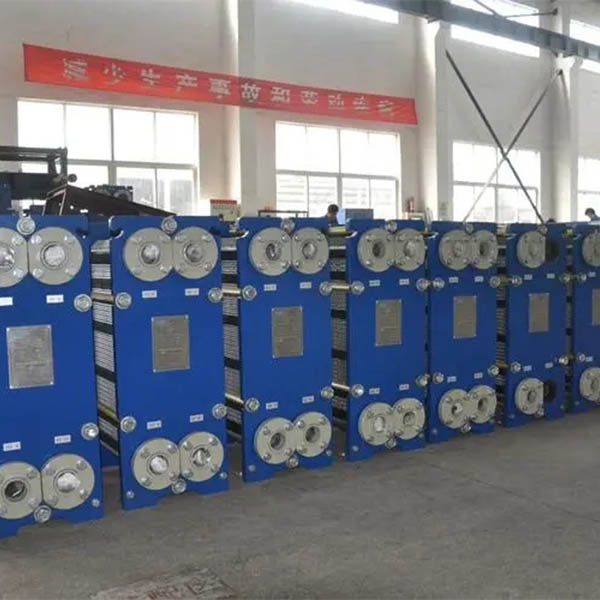

The plate heat exchanger is composed of heat transfer corrugated plates and frames. The plates are clamped between the fixed pressing plate and the movable pressing plate by bolts, and many flow channels are formed in the heat exchanger, and the plates are sealed with rubber. There is a connecting pipe between the equipment and the outside on the pressing plate.

Parameter

Structure and function of plate heat exchanger:

1. The thickness of the pressure plate is generally determined according to the clamping capacity of the movable steel plate and the sealing plate.

2. Upper guide rod: it is fixed on the fixed pressing plate and pillar to support and position the plate.

3. Lower guide rod: it plays a role in positioning the plate and forms the positioning of the plate with the upper guide rod.

4. Clamping bolts: evenly arranged around the compression plate to clamp the plates between the fixed and movable compression plates.

5. Plate: the heat transfer element is generally made of stainless steel as required. After the plates are compressed, a certain gap is reserved between them to form a fluid channel. The heat exchange medium flows out and in from the connecting pipe on the clamping plate and correspondingly enters the (odd and even) fluid channel between the plates for heat exchange.

6. The sealing gasket ensures the flow channel between plates and the sealing of plates to the outside. The material is determined according to the heat exchange medium. There are two seals around the corner hole and a signal hole connected with the atmosphere to ensure that the two working media will not be in series with each other.

As a professional pressure vessel enterprise, Henan Mikim Machinery Co., Ltd. has been involved in the pressure vessel industry since 2012. Our company can provide products such as large cryogenic storage tanks and LPG series containers. At the beginning of the company's establishment, it purchased the most advanced equipment and recruited a group of skilled front-line workers. We are committed to providing the best products to our international customers. The company covers an area of 68,000 square meters and has 100 front-line workers, 12 technicians and 6 quality inspectors. The integration of production and sales, the company consists of five main departments: production department, technical department, sales department, general accounting department, and human resources department. Also, each department can be divided into many smaller departments. All departments cooperate with each other to bring the best for our company. In order to bring the most qualified products to the market, our quality control department implements strict quality inspection process from raw material procurement to finished product testing, to ensure that only the best products leave the factory for customers.

The group adheres to the tenet of “intentional management, customer priority, coordinated development and dedication to society” and abides by the business philosophy of “technology first, quality as priority, striving for excellence, integrity for future”, which continuously satisfy different needs of customer around the world in the steel supply chain area. Professional sales team, providing customers with first-class services; strict purchasing and quality inspection team, carefully selecting high-quality raw materials; advanced scientific and technical team to improve production and reduce costs for customers; excellent design and processing team, carefully crafted and refined; intimate shipping logistics team protecting product transportation.
